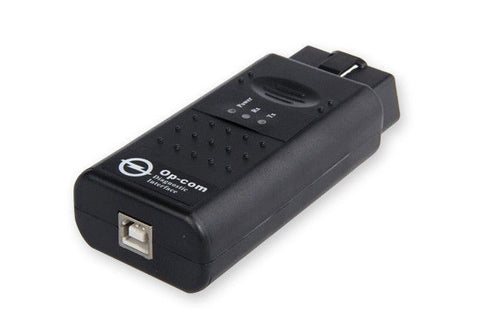

OPCOM Vauxhall / Opel Diagnostic Scanner OBD2 OBDII Fault Code Reader OP-COM USB PC








The OPCOM Vauxhall scanner is a PC based Vauxhall/Opel diagnostic program and covers almost all Vauxhall/Opel cars (up to 2010), including newer models with CAN-BUS based diagnostics, such as Vectra-C, Astra-H, Zafira-B. The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test, and supports remote, and key programming. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples. Since Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication. Full fault code text description and status information (Present, Not present, Intermittent). This interface is also suitable for SAAB models with Vauxhall/GM engines.



At a glance...

  • Fantastic, feature rich OPCOM USB scan tool which will save you money and time!
  • Suitable for: Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control etc
  • Works with Microsoft XP, Vista and Windows 7 and 8
  • Includes our own bespoke instructions, guides and videos



OPCOM functions

1.It covers almost all Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.

2.The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.

3.The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.

4.Since Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.

PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000).

5.Fault codes will be shown with all available information.



OPCOM full fault code description

1) Full status information (Present, Not present, Intermittent)

2) You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.

3) The program shows you measuring block information on many control module, you can choose anything from the list on your own.

4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!



You can also run output tests on many controllers.

PIN6-PIN14

PIN3-PIN11

PIN1

HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps

MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps

SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

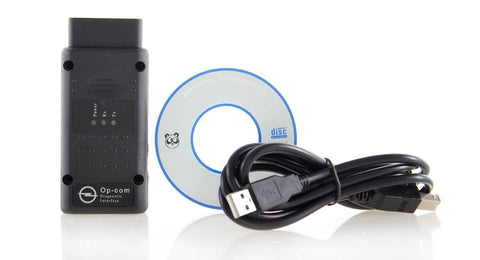

OP COM Package list:

1. OP COM Interface

2. USB Cable

3. Software and Drivers CD
